All-O-Matic
SL 100
• 1/2 HP Motor - 115VAC
• 800 lbs. 30 ft. Gate Capacity
• Light Commerical Capacity

DC Battery Back Up
(Dealer Installed)


Allstar Corporation

Leader PLUS
• 1/2 HP Motor - 115VAC
• 800 lbs. 24 ft. Gate Capacity
• Light commerical Capacity

Combines engineering innovation and reliability with superb styling.

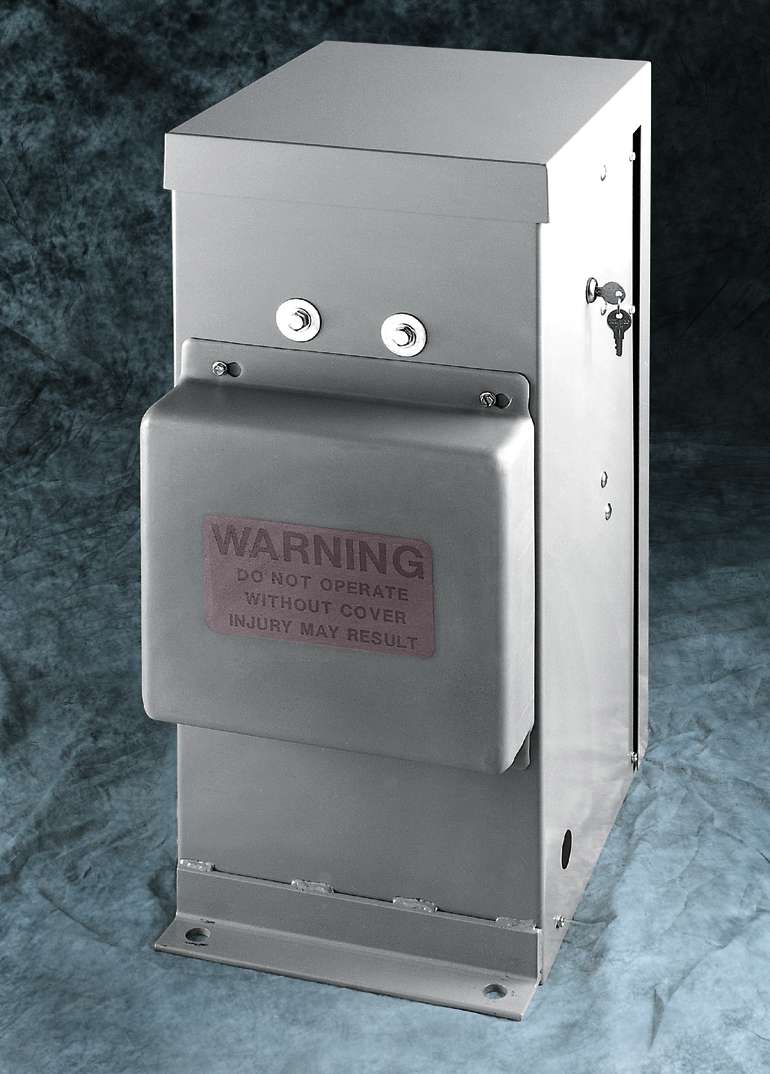

GateStar 1000 (formerly Mark I)
• 1/2 HP Motor - 115VAC
• 1200 lbs. 45 ft. Gate Capacity
• Commercial Capacity

Low-friction, high-efficiency Timing Belt Drive System.


Apollo Gate Operators

Model 7000
• 12 VDC Motor (Low Voltage)
• 400 lbs. 20 ft. Gate Capacity
• Residential Capacity
• 12VDC Car-Type Battery Req.
• AC Charger or Solar Panel Required.

AC Charger - 1.5 Amp/Hour
Solar Panel - 5 Watt
Bracket for Solar Panel


M odel 7100
• 12 VDC Motor (Low Voltage)
• 600 lbs. 25 ft. Gate Capacity
• Residential Capacity
• 12VDC Car-Type Battery Req.
• AC Charger or Solar Panel Required.

AC Charger - 1.5 Amp/Hour
Solar Panel - 5 Watt
Bracket for Solar Panel


DC Solutions, Inc.

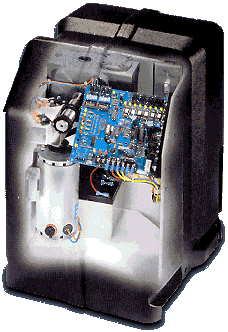

MegaSlide
• 24 VDC 1/2 Hp Commercial Motor
• 850 lbs. 32 ft. Continious Duty
• Commercial Capacity
• Two 12VDC Batteries Req.
• Full time battery backup

Battery, 12 VDC (Each)


Door King

Model 9050-080
• 1/3 HP Motor - 115VAC
• 275 lbs, 16ft. 10 Cycles/Hr
• Light Residential Capacity
• No Uphill Slide

Baseplate for Post Mount


Model 9070-080
• 1/2 HP Motor - 115VAC
• 750 lbs, 22 ft. 60 Cycles/Hr
• Light Commercial Capacity
• No Uphill Slide

Baseplate for Post Mount


Elite Access Systems

RoboSlide
• 12 VDC Motor (low voltage)
• 800 lb. 20 ft. 50 Cycles Max.
• Residential Capacity
• No Uphill Slide
• 12 VDC 7AH Battery Included
• AC Charger or Solar Panel Req.

AC Charger - 18VAC
Solar Panel - 64 Watts


SL3000-UL
• 12 HP Motor - 115VAC
• 1000 lb., 37 ft., Gate Capacity
• Commercial Capacity
• Molded Polyethelene Black Cover (UL Listed)

DC Battery Backup,
Dealer Installed


GTO (Gates That Open)

SL-1000
• 12 VDC Motor
• 500 Lb., 30 ft. Gate Capacity, 90 Cycles a Day
• Residential Capacity
• Includes Receiver and 1 GTO Transmitter

SL-1200 (Slave Operator)

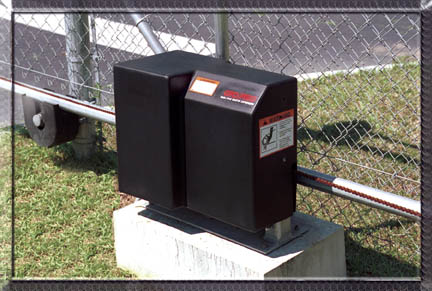

SL-2000
• 12 VDC Motor
• 1000 Lb., 30 ft. Gate Capacity, Continuous Duty Cycling
• Residential Capacity
• Includes Receiver and 1 GTO Transmitter

SL-2200 (Slave Operator)


Hy-Security

222SS
• 1 HP Motor
• 1000 lb. 1 ft/sec.
• Commercial Capacity

Multiple Voltage Phases


222E
• 1 HP Motor
• 4000 lb. 1 ft/sec.
• Commercial Capacity

Multiple Voltage Phases


OSCO


SLC211/221
• ½ HP PSC Motor
• 800 lb. 11 in./sec.
• Commercial Capacity
115VAC or 230VAC Single Phase

SLC411/421
• ¾ HP PSC Motor
• 1000 lb. 11 in./sec.
• Commercial Capacity

115VAC or 230VAC Single Phase


SLR211/221
• ½ HP PSC Motor
• 500 lb. 11 in./sec.
• Commercial Capacity
115VAC or 230VAC Single Phase

SLD211
• ½ HP PSC Motor
• 700 lb. 8 in./sec.
• Commercial or Residential Capacity

24VDC or (1
15VAC Transformer or Solar)
Single Phase


Ramset

Ram-100
• 1/2 HP 120 VAC. 4.7 Amp. Continuous Duty Motor
• 600 lb. 18 ft
• Residential Capacity
• Size 43 30/1 Worm Gear Reducer lubricated in an oil bath

Sentex Systems

SL 1000-B3 (Estate Series)
• 1/2 HP Motor - 115VAC
• 1000 lb. 40 ft
• Commercial Capacity
• Simple PCB (NoModem)

SL 1000-B3 w/DC Battery
Back Up (Factory Installed)


SL 1000-X3 (Estate Series)
• 1/2 HP Motor - 115VAC
• 1000 lb. 40 ft
• Commercial Capacity
• Advanced PCB W/Software (Built-in Modem)

SL 1000-B3 w/DC Battery
Back Up (Factory Installed)
