EDC Turnstiles

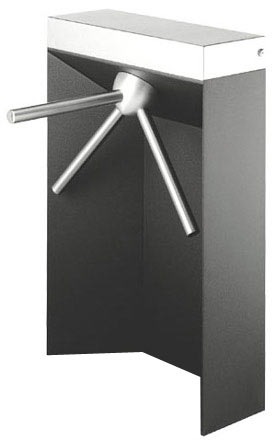

Alvarado's EDC turnstiles are the perfect choice for
high volume patron counting applications. The EDC

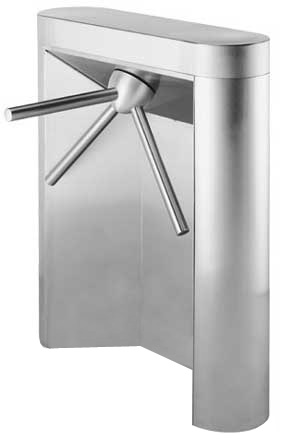

(shown at right) and EDC Bullnose (shown below)
feature precision cast internal components, a smooth,
hydraulically dampened arm rotation, and a very
comfortable patron passage width.

For installations were power is not available, the EDC
uses a mechanical microswitch to output counts to a
local battery powered digital counter, and/or Alvarado's
GateWatch™ computerized patron counting software.

For applications where power is available, electrically
controlled EDCX models utilize a state-of-the-art controller
with opto-interrupter rotation detection. This feature,
offered exclusively by Alvarado, eliminates the need for
mechanical microswitches and the accompanying
adjustments that are often required.

All EDC models are available as fixed or portable units,
and may be ordered in extended configurations, with
longer arms and cabinets. Cabinets are available in
satin stainless steel, as well as a variety of durable
powder coat finishes.

• EDC Datasheet (.PDF - 413KB)
• EDC Bullnose Datasheet (.PDF - 397KB)

SLT Turnstiles

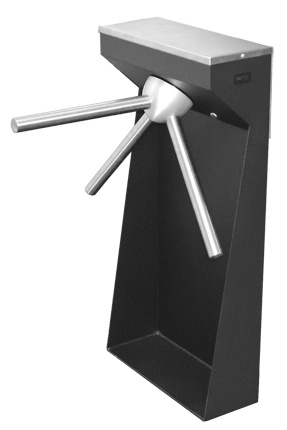

Alvarado's economical, space-saving SLT waist high
turnstiles can provide an effective patron counting
solution. When configured with available mechanical
microswitch option, the SLT can send counts to a
local battery powered digital counter, as well as to
Alvarado's GateWatch™ counting software.

All SLT turnstiles include precision cast internal
components, hydraulically dampened arm rotation and wide patron passage width. Available in black powdercoat finish with a stainless steel lid, SLT turnstiles can be ordered as fixed or portable units.

• SLT Datasheet (.PDF - 170KB)

Supervisor 500/500CL
Optical Turnstiles

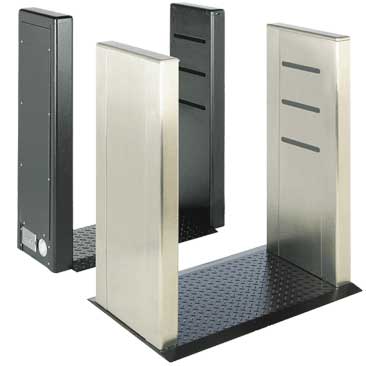

The Supervisor 500 Series of optical counting turnstiles provide highly accurate entry and exit counts. Because they are barrier free, SU500 lanes have a higher patron throughput rate than conventional turnstiles. The SU500 Series recognizes tailgating and can differentiate between objects and people. For single or bi-directional operation.

• SU500 Datasheet (.PDF - 536KB)

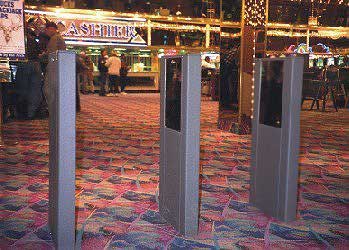

The SU500CL is the center-lane version of
the SU500. It uses less space for multi-lane
configurations because center cabinets
contain a sending unit for one passage lane
and receiving unit for adjacent lane. SU500
series works with Alvarado's GateWatch™ software.
